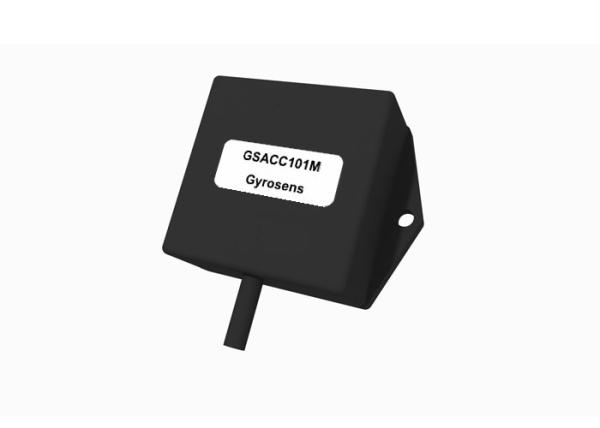

GSACC101M MEMS Accelerometer with ±1 g Range ≥50 Hz Bandwidth and 1000±30 mV/g Sensitivity for Aircraft Stability Control

Brand Name : Gyrosens

Model Number : GSACC101M

Certification : ce

Place of Origin : china

MOQ : 1pcs

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Input voltage : 5±0.25 VDC

Input current : ≤2 mA Output Mode 0.5~4.5V

Output Mode : 0.5~4.5V

Range : ±1 g

Bandwidth : ≥50 Hz

Contact Now

Feature:

Analog voltage output

Wide measuring range

impact resistance,Good vibration performance

Small size, light weight,

Good linearity

Application:

Aircraft Stability control

seismic detection

Technical Specifications:

Parameter

GSACC101M

Electric character

Input voltage

5±0.25 VDC

Input current

≤2 mA

Output Mode

0.5~4.5V

Performance index

Axial direction

X

Range

±1 g

Bandwidth

≥50 Hz

Sensitivity

1000±30 mV / g

Resolution (°/s)

≤ 0.001 g

Nonlinear (%FS)

≤ 0.5% Fs

Bias

2.5±0.1 V

Start-up time (ms)

≤1 s

Physical Characteristics

Weight (g)

40g

Dimensions

19.5×18.8×8.4 mm

Dimensions:

GSACC101M MEMS Accelerometer with ±1 g Range ≥50 Hz Bandwidth and 1000±30 mV/g Sensitivity for Aircraft Stability Control


Dimensions:
