DESCRIPTION

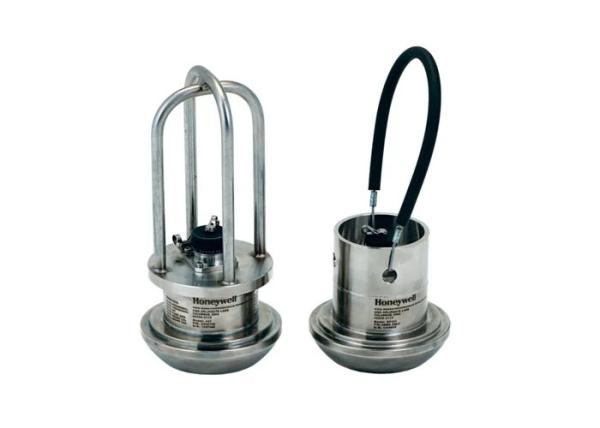

Models 434/435/437 Wing Union/ Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They are
constructed as an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, which provides hermetic integrity and minimizes media leakage versus multi-piece parts. The isolated pressure sensing diaphragm minimizes zero-shift during hammer up and eliminates long-term signal drift in the field. The Weco® 1502, 2002, and 2202 Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive
and corrosive media. The Honeywell proprietary stainless steel electrical connection provides enhanced secondary pressure containment. Special assembly processes provide enhanced shock and vibration for reliable performance in the field.
DIFFERENTIATION
•High or standard accuracy allow ability to obtain tighter system requirements and lower error bands than comparable competitive models
•Shunt calibration option enhances configurability and flexibility; 1-wire shunt calibration is achievable with a single barrier application, helping to minimize installation costs
•IEC Ex approval allows for use in hazardous areas, in Asia-Pacific and EMEA, and by the U.S. Coast Guard
•Protective cage option
•Welded construction
VALUE TO CUSTOMERS
•Durable: Weco® Wing Union- compatible fittings are machined of Inconel® X-750, or optional NACE- compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
•Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
•Accurate: High accuracy option provides confidence in the actual measured pressure value,
particularly for smaller changes in pressure, allowing drilling operation adjustments as needed.
•Availability and service: Global manufacturing and support allow Honeywell to quickly provide customized products, helping customers meet project timelines
APPLICATIONS
•Acidizing, choke manifold, fracturing and cementing, measurement
while drilling (MWD), mud pumps/ mud logging, new well development and extraction, oil and gas drilling,
service and cement trucks, standpipe, stimulation, well head measurement
FEATURES
•Pressure range 0 to 5000 psi; 0 to 6000 psi; 0 to 10000 psi; 0 to 15000 psi; 0 to 20000 psi; 0 to 350 bar; 0 to 400 bar; 0 to 700 bar; 0 to 1000 bar; 0 to 1350 bar
•High accuracy ±0.1 %FSS BFSL (Model 435); standard accuracy
±0.2 %FSS BFSL
(Models 434/435/437)
•Standard aperture (Models 434/435) and wide aperture (Model 437) pressure ports support media blends with high viscosities
•Inconel® X-750 or optional NACE- compliant Inconel® 718 wetted parts
•Multiple electrical connectors supported
•Pressure connections: WECO® 1502, 2002, 2202
•High accuracy 1-wire or 2-wire shunt calibration option allows ability
to validate the offset signal in the field, ensuring the sensor is actively plugged into the system
•Protective cage option
•RFI/EMI protected
•Intrinsically safe: CFMUS/ATEX/ IEC Ex certification
•CE approved
| TABLE 1. PERFORMANCE SPECIFICATIONS |
| Characteristic | Parameter |
| Pressure ranges (Models 435/437) | 0 psi to 5000 psi; 0 psi to 6000 psi; 0 psi to 10000 psi; 0 psi to 15000 psi; 0 psi to 20000 |
| psi2; 0 bar to 350 bar; 0 bar to 400 bar; 0 bar to 700 bar; 0 bar to 1000 bar; 0 bar to 1350 bar2 |
| Pressure ranges (Model 434) | 0 psi to 5000 psi; 0 psi to 6000 psi; 0 psi to 10000 psi; 0 psi to 15000 psi; 0 psi to 20000 psi; |
| 0 bar to 350 bar; 0 bar to 400 bar; 0 bar to 700 bar; 0 bar to 1000 bar; 0 bar to 1350 bar |
| Accuracy1 | High accuracy: ±0.1 %FSS (Model 435)3 |
| Standard accuracy: ±0.2 %FSS (Model 434/Model 435/Model 437) |
| Calibration | Standard 5-point calibration: 0 %, 50 %, and 100 % of full scale Special 10 point and 20 point calibration options available |
| Output | 4 mA to 20 mA, two-wire |
| Resolution | Infinite |
| TABLE 2. ENVIRONMENTAL SPECIFICATIONS |
| Characteristic | Parameter |
| Temperature, operating | -40°C to 125°C [-40°F to 257°F] |
| Temperature, compensating | -40°C to 85°C [-40°F to 185°F] |
| Temperature effect, zero | <±0.018 %FSS/°C [0.01 %FSS/°F] |
| Temperature effect, span | <±0.018 % reading/°C [0.01 % reading/°F] |
| Temperature effect, sealing | IP68 / NEMA 6P |
| TABLE 3. MECHANICAL SPECIFICATIONS |
| Characteristic | Parameter |
| Media | Corrosive and abrasive service, Inconel® X-750 or NACE-compliant Inconel® 718 |
| Overload, safe | 150 % rated full scale pressure or limit of Weco® 1502 fitting |
| Overload, burst | 250 % rated full scale pressure or limit of Weco® 1502 fitting |
| Pressure port | Weco® 1502, 2002, and 2202 wing union, 51 mm [2 in] pipe, male sub end4 |
| Wetted parts material | Inconel® X-750, Inconel® 718 |
| Weight (approx.) | 4.85 lb [2.2 kg] |
| Housing material | 316L stainless steel (with laser engraved labels) |
| Protective cage (optional) | 316L stainless steel |
| TABLE 4. ELECTRICAL SPECIFICATIONS |
| Characteristic | Parameter |
| Supply voltage | 9 Vdc to 28 Vdc |
| Output signal | 4 mA to 20 mA |
| Output at null pressure | 4 mA ±0.2 %FSS |
| Full Scale Span (FSS) | 16 mA ±0.5 %FSS |
| Insulation resistance | >100 MOhm at 20 Vdc |
| Max. loop resistance | 950 ohm @ 28 V decreasing linearly to 0 ohm @ 9 V |
| Circuit protection | Reverse polarity protection of supply leads |
| RFI/EMI protection | Noise immunity up to 2.7 GHz |
| Frequency response | 2500 Hz |
| Zero and span adjustment | Consult factory for more information. |
| MS series compatible 4-pin (32A-14S-2P-10-M2); Bendix PT, 6-pin (PTIH-10-6P); |
| Jupiter M and TP Series 4-pin; Jupiter M and TP Series 7-pin; Rota B-Series 4-pin |
| Electrical termination |
|
| Shunt calibration wiring options | None / One-wire / Two-wire |
| Shunt calibration signal range | 100 %FSS |
| Shunt calibration accuracy | <±0.2 %FSS |
| TABLE 5. INTRINSICALLY SAFE APPROVALS |
| Agency | Approvals |
| Class 1, Div 1, Groups A, B, C, D |
| cFMus | Class 1, Zone 0, AEx / Ex ia IIC T4/T5 Ga (T4 at Ta≤85˚C, T5 at Ta≤40˚C); Install per 008-0691-00 |
| ATEX | II 1 G Ex ia IIC T4/T5 Ga (T4 at Ta≤85˚C, T5 at Ta≤40˚C) |
| IEC Ex | Ex ia IIC T4/T5 Ga (T4 at Ta≤85˚C, T5 at Ta≤40˚C) |
| UKCA | II 1 G Ex ia IIC T4/T5 Ga |
| Ta = -40°C to 40°C (T5), -40°C to 85°C (T4) (Pending Approval) |
| TABLE 6. ORDER GUIDE (SAMPLE LISTINGS) |
| Order Code | Description |
| BP434EL,6,1AC,2AK,3J,6A,7AH,10J | Model 434, 20000 psi, ±0.2 %FSS accuracy, -40°C to 85°C [-40°F to 185°F] temperature compensation, 4 mA to 20 mA two-wire intrinsically safe, two-wire shunt calibration, Bendix PT 6-pin connector, Inconel® 718 wetted diaphragm |
