49C Series Diffuse Reflection Sensor with Background Suppression
Product Introduction
The 49C Series is a high-performance diffuse reflection sensor utilizing background suppression technology to ensure precise object detection across varying surfaces. Engineered for reliability, it minimizes black-white detection errors to <10% within a 1200 mm range, making it ideal for industrial automation tasks. With a wide operating range (0.005–3 m for white surfaces, 0.02–2 m for gray, and 0.05–1.5 m for black), the sensor adapts to diverse materials. Powered by a red LED light source (630 nm wavelength), it features dual relay outputs, transient protection, and a rugged IP67-rated housing, ensuring consistent performance in harsh environments from -40°C to 60°C.
Key Features
Advanced Sensing Technology:
Diffuse reflection principle with background suppression reduces false triggers.
Black-white error <10% up to 1200 mm for reliable detection on varying surfaces.
Adjustable range from 120 mm to 3000 mm via multiturn potentiometer.
Wide Operating Range:
White 90% reflectance: 0.005–3 m
Gray 18% reflectance: 0.02–2 m
Black 6% reflectance: 0.05–1.5 m
Electrical Specifications:
Universal supply voltage: 20–250 V AC/DC
Low power consumption: 1.5 V·A (AC mode)
Dual digital relay outputs (NC/NO), switchable between light/dark modes
Switching frequency: 25 Hz, response time: 20 ms
Robust Design:
IP67 protection against dust and water immersion
Operating temperature: -40°C to 60°C, storage: -40°C to 70°C
Plastic housing (PC) with red finish, lens cover: durable plastic
Through-hole mounting with optional accessories
Functional Controls:
Multiturn potentiometer for range adjustment
Teach button for quick setup
Time module activation for dropout delay functionality
Compliance & Certifications:
c UL US approved, meets IEC 60947-5-2 standards
ECLASS and ETIM classifications: 27270904 / EC002719
Exempt LED group per EN 62471, protection class II
Connectivity:
5-pin spring-cage terminal block for easy wiring
Signal OUT function for system integration
Dimensions & Weight:
31 mm (W) x 104 mm (H) x 55.5 mm (L)
Net weight: 150 g
Product Tags:
|
|

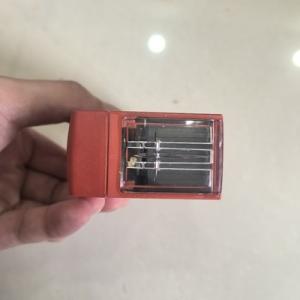

49C Series Diffuse Reflection Sensor with Background Suppression Images
|
